Product Summary

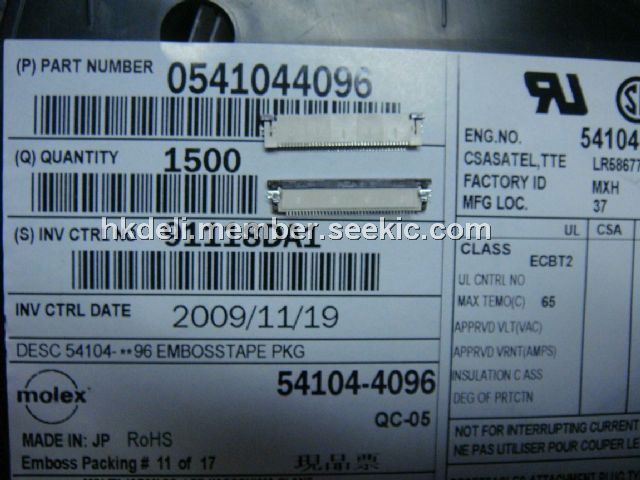

The 54104-4096 is a 0.5mm connector .
Parametrics
Physical: (1)Circuits (Loaded):40; (2)Color - Resin:Natural; (3)Contact Position:Top; (4)Durability (mating cycles max):20; (5)Flammability 94V-0; (6)Mated Height (in):0.079 In; (7)Mated Height (mm):2.00 mm; (8)Material - Metal:Phosphor Bronze; (9)Material - Plating Mating:Tin-Bismuth; (10)Material - Plating Termination:Tin-Bismuth; (11)Material - Resin:High Temperature Thermoplastic; (12)Number of Rows:1; (13)Orientation:Right Angle; (14)PC Tail Length (in):0.024 In; (15)PC Tail Length (mm):0.60 mm; (16)PCB Locator:No; (17)PCB Retention:None; (18)Packaging Type:Embossed Tape on Reel; (19)Pitch - Mating Interface (in):0.020 In; (20)Pitch - Mating Interface (mm):0.50 mm; (21)Plating min: Mating (μin):40; (22)Plating min: Mating (μm):1; (23)Plating min: Termination (μin):40; (24)Plating min: Termination (μm):1; (25)Polarized to PCB:Yes; (26)Stackable:No; (27)Surface Mount Compatible (SMC):N/A; (28)Temperature Range - Operating:-40℃ to +85℃; (29)Termination Interface: Style Surface Mount; (30)Wire/Cable Type:FFC/FPC
Features
Features: (1)0.50mm (.020") ; (2)Pitch FFC/FPC Connector; (3)Right Angle; (4)SMT; (5)ZIF; (6)Top Contact Style; (7)40 Circuits; (8)Lead-free.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 54104-4096 |
![]() Molex |
![]() FFC / FPC Connectors 40CKT RA SMT ZIF TOP CONTACT |
![]() Data Sheet |
![]()
|
|
||||||||||||||
