Product Summary

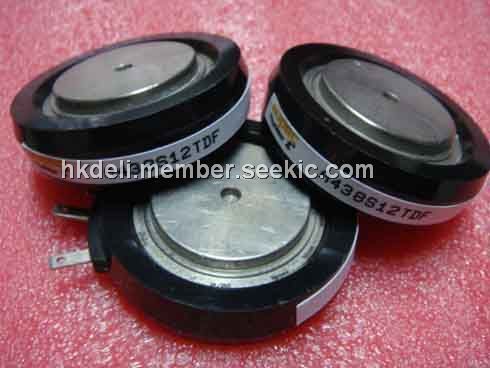

The A438S12TDF is a fast asymmetric thyristor.

Parametrics

A438S12TDF absolute maximum ratings: (1)V(DRM) Max. (V): 1.2k; (2)I(T) Rated Maximum (A): 438± @Temp. (℃) (Test Condition): 85#; (3)I(TSM) Max. (A): 5.5k @ t(w) (s) (Test Condition): 10m; (4)I(GT) Max. (A): 300m; (5)V(GT) Max.(V): 2.7; (6)I(H) Max. (A) Holding Current: 300m; (7)I(D) Max. (A) Leakage Current: 50m @Temp. (℃) (Test Condition): 125х; (8)V(T) Max. (V): 2.1 @I(T) (A) (Test Condition): 1.5k; (9)dv/dt Min. (V/us): 1.0k; (10)t(q) Typ. (s): 20u; (11)Minimum Operating Temp (℃): -40; (12)Maximum Operating Temp (℃): 125х; (13)Thermal Resistance Junc-Case: 53m.

Features

A438S12TDF features: (1)Military/High-Rel: N; (2)Package Style: TO-200var50; (3)Mounting Style: T.

Diagrams

A438S12TDF block diagram
