Product Summary
The SKM400GB128D is a SPT IGBT Module. It is intended for AC inverter drives, UPS, electronic welders at fSW up to 20kHz, etc.
Parametrics
Absolute maximum ratings: (1)Vces of IGBT: 1200V; (2)Ic of IGBT, Tc=25(80)℃: 565(400)A; (3)Icrm of IGBT, tp=1ms: 600A; (4)Vges of IGBT: ±20V; (5)tpsc of IGBT at Vcc=600v; VGE≤20v; Tj=125℃, VCES<1200v: 10us; (6)IF of inverse diode, Tc=25(80)℃: 390(260)A; (7)Ifrm of inverse diode, tp=1ms: 600A; (8)Ifsm of inverse diode, Tp=10ms, sin., Tj=150℃: 2880A; (9)IF of freewheeling diode, Tc=25(80)℃: 390(260)A; (10)Ifrm of freewheeling diode, tp=1ms: 600A; (11)Ifsm of freewheeling diode, Tp=10ms, sin., Tj=150℃: 2880A; (12)It(RMS): 500A; (13)Tvj of module : -40 to +150℃; (14)Tstg of module : -40 to +125℃; (15)Viso of module, AC, 1min: 4000v.
Features
Features: (1)Homogeneous Si; (2)SPT = Soft-Puch-Through technology; (3)V CEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 × Ic.

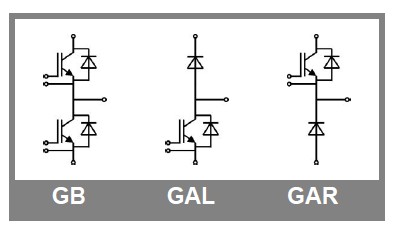

Diagrams
 |
