Product Summary

The AD698APZ is a complete, monolithic Linear Variable Differential Transformer (LVDT) signal conditioning subsystem. It is used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar dc voltage with a high degree of accuracy and repeatability. The AD698APZ contains a low distortion sine wave oscillator to drive the LVDT primary. The device uses a unique ratiometric architecture to eliminate several of the disadvantages associated with traditional approaches to LVDT interfacing.

Parametrics

AD698APZ absolute maximum ratings: (1)Total Supply Voltage (+VS to –VS): 36 V; (2)Storage Temperature Range: P Package: –65℃ to +150℃; Q Package: –65℃ to +150℃; (3)Operating Temperature Range:–55℃ to +125℃; (4)Lead Temperature Range (Soldering 60 sec): +300℃; (5)Power Dissipation Derates above +65℃: P Package: 12 mW/℃; Q Package:12 mW/℃.

Features

AD698APZ features: (1)Single Chip Solution, Contains Internal Oscillator and Voltage Reference; (2)No Adjustments Required; (3)Interfaces to Half-Bridge, 4-Wire LVDT; (4)DC Output Proportional to Position; (5)20 Hz to 20 kHz Frequency Range; (6)Unipolar or Bipolar Output; (7)Will Also Decode AC Bridge Signals; (8)Outstanding Performance: Linearity: 0.05%; Output Voltage: 611 V; Gain Drift: 20 ppm/8C (typ); Offset Drift: 5 ppm/8C (typ).

Diagrams

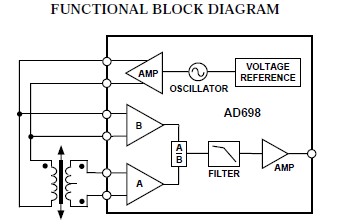

AD698APZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

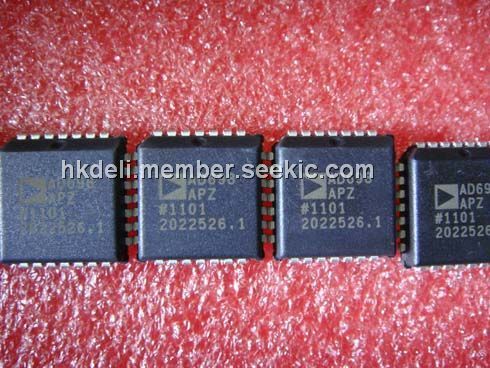

AD698APZ
AD698APZ

IC LVDT SIGNAL COND 28-PLCC
Data Sheet
0-1: $19.71
1-10: $18.23
10-100: $15.57
100-250: $14.29
250-500: $13.60
500-1000: $13.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD693
AD693
Other

Data Sheet
Negotiable
AD693AQ
AD693AQ

IC TRANSMITTER 4-20MA 20-CDIP
Data Sheet
0-1: $11.38
1-10: $10.35
10-100: $8.79
100-250: $8.02
250-500: $7.50
500-1000: $6.90
AD694
AD694
Other

Data Sheet
Negotiable
AD694AQ
AD694AQ

IC SGNL COND 4-20MA TX 16-CDIP
Data Sheet
0-25: $8.97
AD694AR
AD694AR
Analog Devices Inc
IC TRANSMITTER 4-20MA 16-SOIC
Data Sheet
1-1: $6.64
AD694ARZ
AD694ARZ

IC TRANSMITTER 4-20MA 16-SOIC
Data Sheet
0-1: $7.16
1-10: $6.51
10-100: $5.54
100-250: $5.05
250-500: $4.72
500-1000: $4.34
