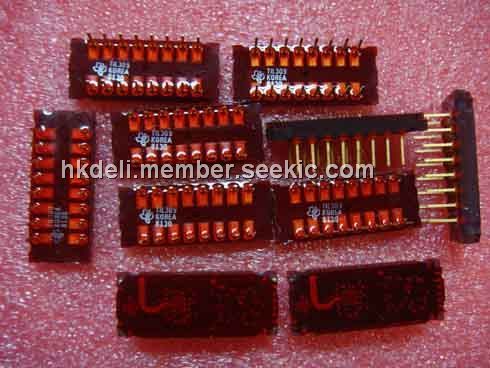

Product Summary
The TIL309 is an internally-driven seven-segment light-emitting-diode (LED) displays containing a five-bit latch and a decoder/LED driver in a single 16-pin package. A description of the functions of the inputs and outputs of the TIL309 is in the terminal function table. The TTL MSI circuits contain the equivalent of 78 gates on a single chip. Logic inputs and outputs are completely TTL/DTL compatible. The buffered inputs are implemented with relatively large resistors in series with the bases of the input transistors to lower drive-current requirements to one-half of that required for a standard Series 54/74 TTL input.
Parametrics
TIL309 absolute maximum ratings: (1)Supply voltage, VCC (see Note 1)-Continuous: 5.5 V; (2)Supply voltage, VCC (see Note 1)-Nonrepetitive peak, tw ≤100 ms:7V; (3)Input voltage (see Note 1): 5.5 V; (4)Operating case temperature range, TC (see Note 2): 0 to 85℃; (5)Storage temperature range– 25 to 85℃.
Features
TIL309 features: (1)6,9-mm (0.270-Inch) Character Height; (2)TIL309 Has Right Decimal; (3)Easy System Interface; (4)Internal TTL MSI Chip With Latch, Decoder,and Driver; (5)Constant-Current Drive for Light-Emitting Diodes Wide Viewing Angle.

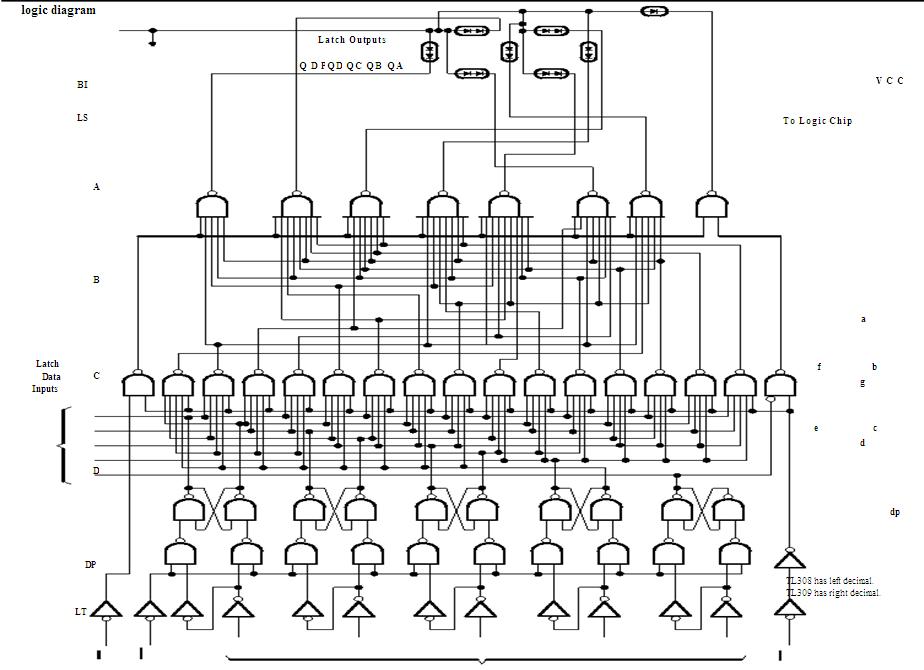

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIL309 |
Other |
|
Data Sheet |
Negotiable |
|
||||
