Product Summary

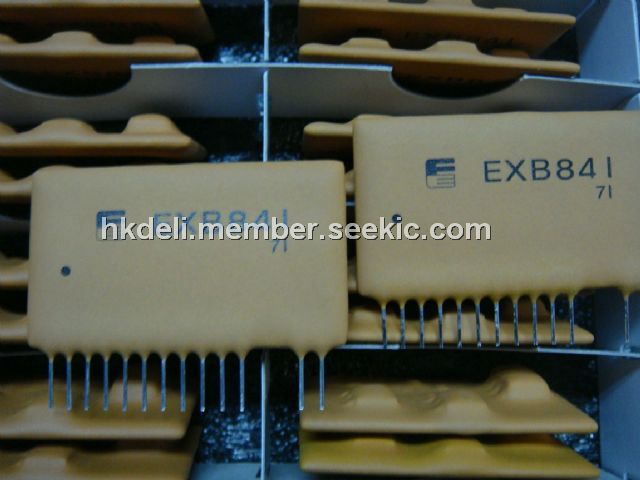

The EXB841 is a insulated gate bipolar transistor. It is used in small, low-noise, high-performance power supplies, inverters, uniterruptable power supplies, and motor speed controls.

Parametrics

Absolute maximum ratings: (1)supply voltage:25V; (2)photocoupler input current:25mA; (3)forward bias output current:4.0A; (4)reverse bias output current:4.0A; (5)input/output isolation voltage:2500V; (6)operating surface temperature:-25℃ to +85℃; (7)storage temperature:-25℃ to +125℃.

Features

Features: (1)builit-in photocoupler for high isolation voltage:2500V AC for one minute; (2)single supply operation; (3)built-in overcurrent protection circuit; (4)overcurrent detection output; (5)SIL package for high-density mounting.

Diagrams
