Product Summary

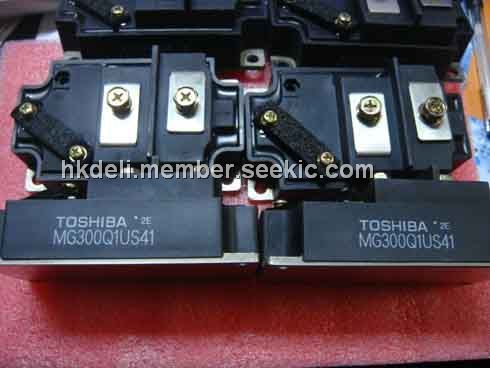

The MG300Q1US41 is an N channel IGBT for high power switching applications and motor control applications.
Parametrics
MG300Q1US41 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)gate-emitter voltage: ±20V; (3)collector power dissipation: 2000W; (4)junction temperature: 150℃; (5)storage temperature range: -40 to 125℃; (6)isolation voltage: 2500V.
Features
MG300Q1US41 features: (1)high input impedance; (2)high speed; (3)low saturation voltage; (4)enhancement-mode; (5)the electrodes are isolated from case.
Diagrams
 |
