Product Summary

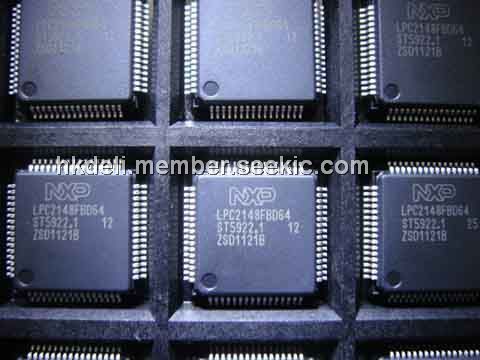

The LPC2148FBD64 microcontroller is based on a 16-bit/32-bit ARM7TDMI-SCPU with real-time emulation and embedded trace support, that combine microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit widememory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumbmode reduces code by more than 30 % with minimal performance penalty.
Parametrics
LPC2148FBD6 absolute maximum ratings: (1)supply voltage: -0.5~+3.6V; (2)analog supply voltage: -0.5~4.6V; (3)input voltage on pin VBAT: -0.5~4.6V; (4)analog input voltage: -0.5~5.1V; (5)DC supply current: 100mA; (6)DC ground current: 100mA; (7)storage temperature: -40~125℃; (8)package total power dissipation: 1.5W.
Features
LPC2148FBD6 features: (1)16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)Single 10-bit DAC provides variable analog output; (3)Two 32-bit timers/external event counters; (4)Low power Real-Time Clock (RTC) with independent power and 32 kHz clock input; (5)Single power supply chip with POR and BOD circuits.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LPC2148FBD64,151 |
NXP Semiconductors |
ARM Microcontrollers (MCU) ARM7 512KF/40KR/USB |
Data Sheet |
|
|
||||||||||||
