Product Summary
The AD8610ARZ is a very high precision JFET input amplifier featuring ultralow offset voltage and drift, very low input voltage and current noise, very low input bias current, and wide bandwidth.Unlike many JFET amplifiers, the AD8610ARZ input bias current is low over the entire operating temperature range. The AD8610ARZ is stable with capacitive loads of over 1000 pFin noninverting unity gain; much larger capacitive loads can bedriven easily at higher noise gains. The AD8610ARZ swings to within 1.2 V of the supplies even with a 1 kΩ load, maximizingdynamic range even with limited supply voltages.
Parametrics
AD8610ARZ absolyte maximum ratings: (1)Supply Voltage: 27.3 V; (2)Storage Temperature Range: -65~150℃; (3)Operating Temperature Range: -40~125℃; (4)Junction Temperature Range: -60~150℃; (5)Lead Temperature Range (Soldering, 10 sec): 300℃.
Features
AD8610ARZ features: (1)Low Noise; (2)Low Offset Voltage; (3)Low Input Bias Current; (4)Fast Settling: 600 ns to 0.01%; (5)Low Distortion; (6)Unity Gain Stable; (7)No Phase Reversal; (8)Dual-Supply Operation:5 V to13 V.

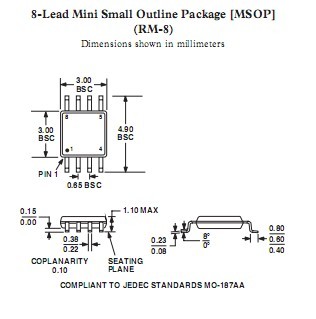

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

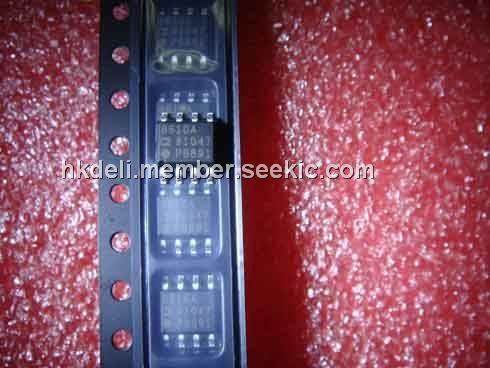

 AD8610ARZ |
|
IC OPAMP JFET 25MHZ PREC 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8610ARZ-REEL |
|
IC OPAMP JFET 25MHZ PREC 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8610ARZ-REEL7 |
|
IC OPAMP JFET 25MHZ PREC 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
