Product Summary

The D45H8 is a silicon multiepitaxial planar PNP transistor mounted in Jedec TO-220 plastic package. It is inteded for various switching and general purpose applications. The D45H8 is complementary with D44H8.

Parametrics

Absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage (IB = 0): -60 V; (2)VEBO Emitter-Base Voltage (IC = 0): -5 V; (3)IC Collector Current: -10 A; (4)ICM Collector Peak Current: -20 A; (5)IB Base Current: -5 A; (6)Ptot Total Dissipation at Tc ≤25℃: 50 W; (7)Tstg, Storage Temperature: -65 to 150℃; (8)Tj, Max. Operating Junction Temperature: 150℃.

Features

Features: (1)STM preferred salestypes; (2)low collector-emitter saturation voltage; (3)fast switching speed.

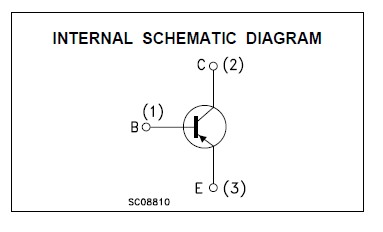

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
D45H8G
D45H8G

ON Semiconductor

Transistors Bipolar (BJT) 10A 60V 50W PNP

Data Sheet

0-1: $0.55
1-25: $0.49
25-100: $0.37
100-500: $0.31
D45H8
D45H8

STMicroelectronics

Transistors Bipolar (BJT) PNP General Purpose

Data Sheet

0-1: $0.42
1-10: $0.39
10-100: $0.36
100-250: $0.34
