Product Summary

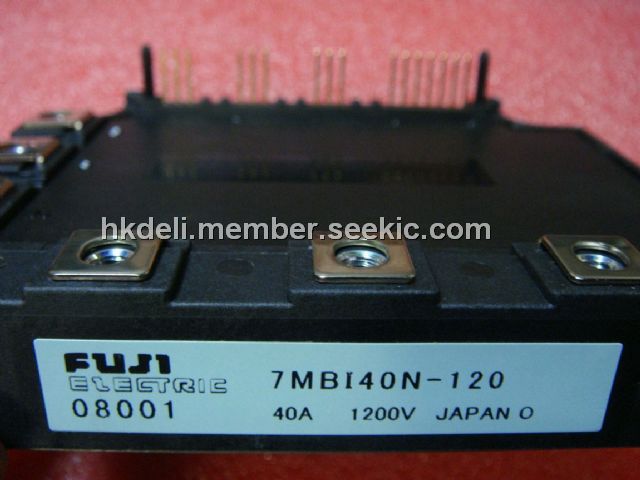

The 7MBI40N-120 is a 1200V IGBT module.

Parametrics

Absolute maximum ratings: (1)Collector-Emitter Voltage:1200V; (2)Gate -Emitter Voltage:±20V; (3)Collector Power Dissipation :120W; (4)Repetitive Peak Reverse Voltage:1200V; (5)Average Forward Current:1A; (6)Surge Current:50A; (7)Operating Junction Temperature:+150℃; (8)Storage Temperature:-40℃ to +125℃; (9)Isolation Voltage:2500V.

Features

Features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function(4 to 5 Times Rated Current ).

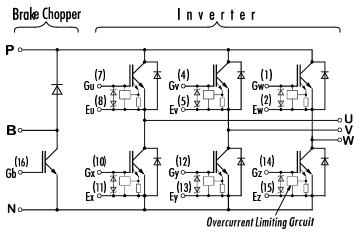

Diagrams
