Product Summary

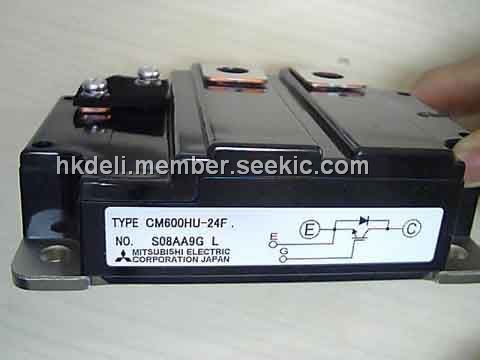

The CM600HU-24F is an Insulated Type IGBT MODULE for high power swithcing use.

Parametrics

CM600HU-24F absolute maximum ratings: (1)Collector-emitter voltage: 1200v; (2)Gate-emitter voltage: ±20v; (3)Maximum collector dissipation:1900w; (4)Junction temperature: -40 to 150℃; (5)Storage temperature: -40 to 125℃.

Features

CM600HU-24F features: (1)IC: 600A; (2)VCES: 1200V; (3)Insulated Type; (4)1-elements in a pack.

Diagrams

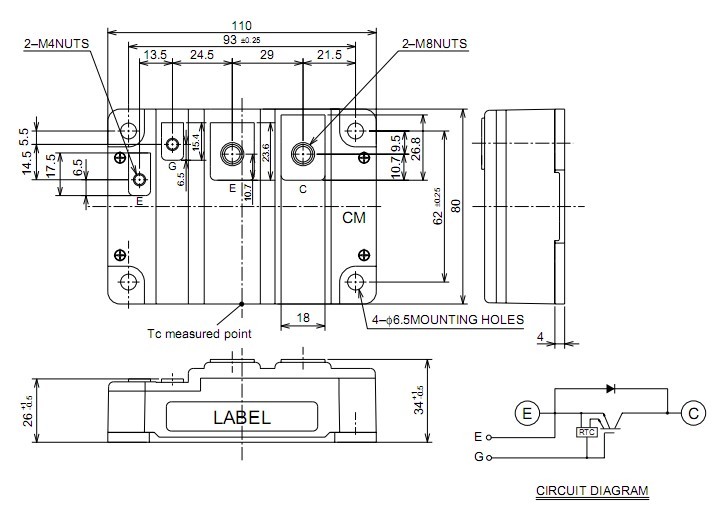

CM600HU-24F OUTLINE DRAWING & CIRCUIT DIAGRAM
