Product Summary

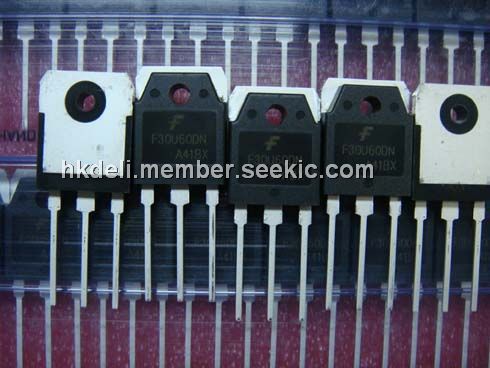

The FFA30U60DN is an ultra fast recovery power rectifier. The applications are General purpose, Switching mode power supply, Free-wheeling diode for motor application and Power switching circuits.

Parametrics

FFA30U60DN absolute maximum ratings: (1)VRRM, Peak Repetitive Reverse Voltage: 600 V; (2)IF(AV), Average Rectified Forward Current: 30 A; (3)IFSM, Non-repetitive Peak Surge Current: 180 A; (4)TJ, TSTG, Operating Junction and Storage Temperature: - 65 to +150℃.

Features

FFA30U60DN features: (1)High voltage and high reliability; (2)High speed switching; (3)Low forward voltage.

Diagrams

FFA30U60DN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FFA30U60DN
FFA30U60DN

Other


Data Sheet

Negotiable
FFA30U60DNTU
FFA30U60DNTU

Fairchild Semiconductor

Rectifiers 30a/600V Rectifier UF Recovery

Data Sheet

Negotiable
