Product Summary
The CY7C63001C-PXC is a Universal Serial Bus Microcontroller.
Parametrics
CY7C63001C-PXC absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS:–0.5V to +7.0V; (4)DC Input Voltage:–0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High-Z state: –0.5V to +VCC+0.5V; (6)Max. Output Current into Port 1 Pins: 60 mA; (7)Max. Output Current into Non-Port 1 Pins: 10 mA; (8)Power Dissipation: 300 mW; (9)Static Discharge Voltage: >2000V; (10)Latch-up Current[1]: >200 mA.
Features
CY7C63001C-PXC features: (1)Low-cost solution for low-speed USB peripherals such as mouse, joystick, and gamepad; (2)USB Specification Compliance; (3)8-bit RISC microcontroller; (4)Internal memory; (5)8-bit free-running timer; (6)Watch dog timer (WDT); (7)Internal power-on reset (POR); (8)Improved output drivers to reduce EMI; (9)Operating voltage from 4.0V to 5.25 VDC; (10)Operating temperature from 0 to 70 degree Celsius; (11)Available in space saving and low cost 20-pin PDIP,20-pin SOIC, and 24-pin QSOP packages; (12)Industry standard programmer support.

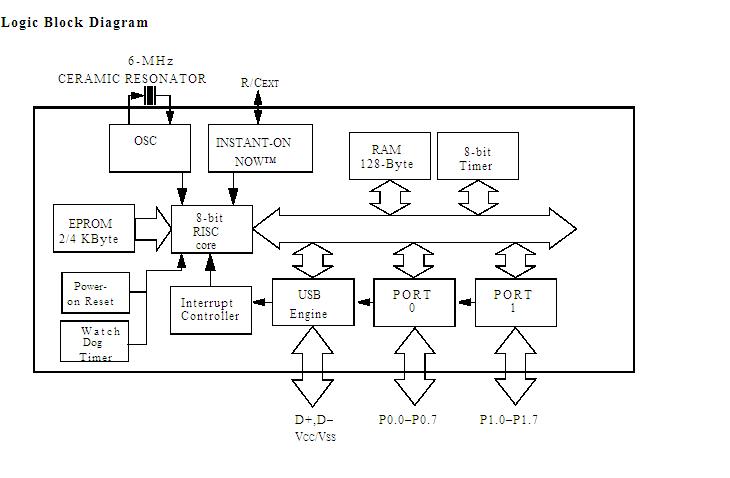

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CY7C63001C-PXC |
![]() Cypress Semiconductor |
![]() 8-bit Microcontrollers (MCU) Universal Serial Bus Microcontroller |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
