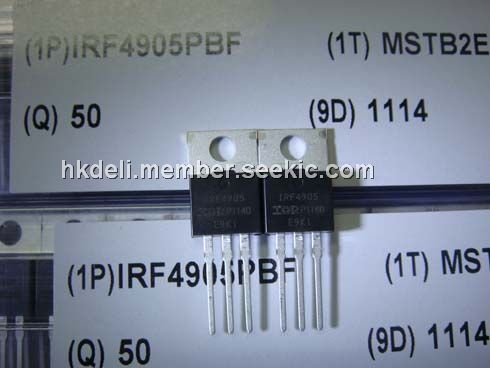

IRF4905

Power MOSFET, Ultra Low On-Resistance, 200W, to220

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.10

PartNumber:: IRF4905

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-22

From Other Seller

Part Number:IRF4905
US $1.00 - 1.10
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF4905 is the Fifth Generation HEXFET from International Rectifier utilizing advanced processing techniques to achieveextremely low on-resistance per silicon area. This benefit, combined with the fast switching speed andruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for usein a wide variety of applications.

Parametrics

IRF4905 absolute maximum ratings: (1)Pulsed Drain Current: -260A; (2)Power Dissipation: 200W; (3)Linear Derating Factor: 1.3W/℃; (4)Gate-to-Source Voltage:± 20V; (5)Single Pulse Avalanche Energy: 930mJ; (6)Avalanche Current: -38A; (7)Repetitive Avalanche Energy: 20mJ; (8)Peak Diode Recovery dv/dt: -5.0V/ns; (9)Operating Junction and Storage Temperature Range:-55 to + 175℃; (10)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃.

Features

IRF4905 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switchingl P-Channel; (6)Fully Avalanche Rated.
