Product Summary

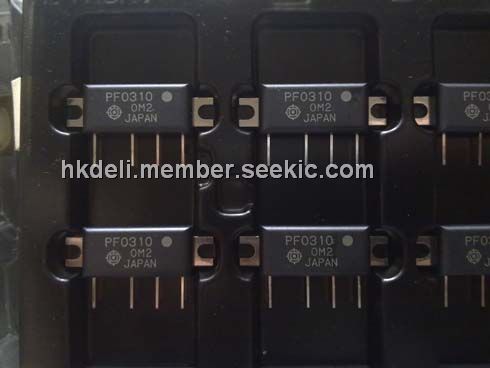

The PF0310 is a MOS FET Power Amplifier Module for VHF Band.
Parametrics
PF0310 absolute maximum ratings: (1)Supply voltage VDD: 17 V; (2)Supply current IDD: 3A; (3)PC voltage VPC: 4.5 V; (4)Input power Pin: 100 mW; (5)Operating case temperature Tc (op): –30 to +100℃; (6)Storage temperature Tstg: –40 to +110℃.
Features
PF0310 features: (1)Small package: 30 × 10 × 5.9 mm; (2)High efficiency: 55% Typ; (3)Low power control current: 0.5 mA Max.

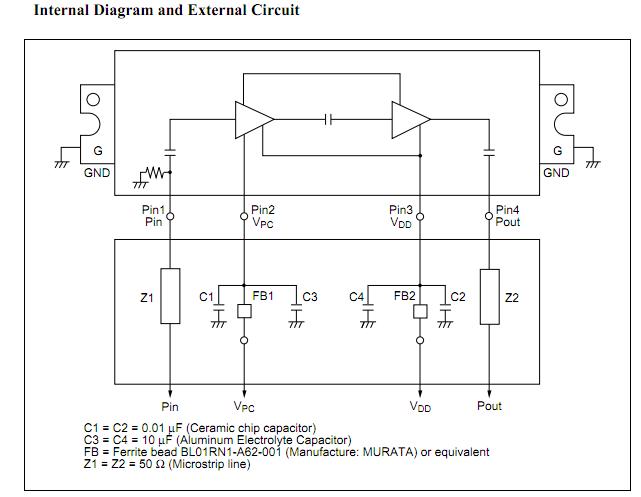

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PF0310 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PF0310A |
Other |
|
Data Sheet |
Negotiable |
|
||||
