Product Summary

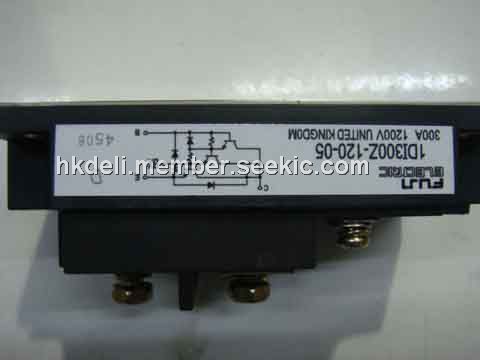

The 1DI300Z-120-05 is a power transistor module. The applicaitons of the device include high power switching, AC motor controls, DC motor controls and uninterruptible power supply.
Parametrics
1DI300Z-120-05 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VEBO: 10V; (4)IC: 300A; (5)ICP: 600A; (6)-IC: 300A; (7)IB: 16A; (8)IBP: 32A; (9)PC: 2000W; (10)Tj: 150℃; (11)Tstg: -40 to 125℃; (12)m: 460g; (13)Viso: 2500V.
Features
1DI300Z-120-05 features: (1)high voltage; (2)including freee wheeling diode; (3)excellent safe operating area; (4)insulated type.

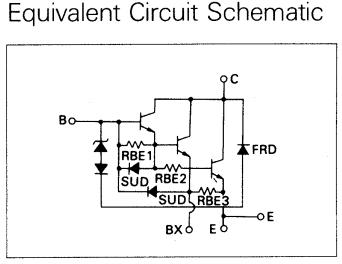

Diagrams
 |
