Product Summary
The ESM6045DV is an NPN darlington power module. The applications of the device include motor control, SMPS & UPS, DC/DC & DC/AC converters, welding equipment.
Parametrics
ESM6045DV absolute maximum ratings: (1)VCEV Collector-Emitter Voltage (VBE = -5 V): 600 V; (2)VCEO(sus) Collector-Emitter Voltage (IB = 0): 450 V; (3)VEBO Emitter-Base Voltage (IC = 0): 7 V; (4)IC Collector Current: 84 A; (5)ICM Collector Peak Current (tp = 10 ms): 126 A; (6)IB Base Current: 8 A; (7)IBM Base Peak Current (tp = 10 ms): 16 A; (8)Ptot Total Dissipation: 250 W; (9)Visol Insulation Withstand Voltage: 2500 V; (10)Tstg Storage Temperature: -55 to 150℃; (11)Tj Max. Operating Junction Temperature 150℃.
Features
ESM6045DV features: (1)high current power bipolar module; (2)very low rth junction case; (3)specified accidental overload areas; (4)ultrafast freewheeling diode; (5)fully insulated package (ul compliant); (6)easy to mount; (7)low internal parasitic inductance.

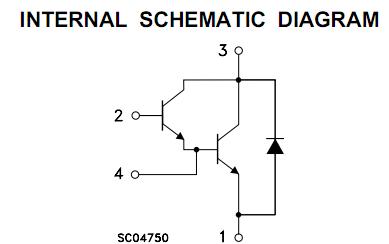

Diagrams
