Product Summary

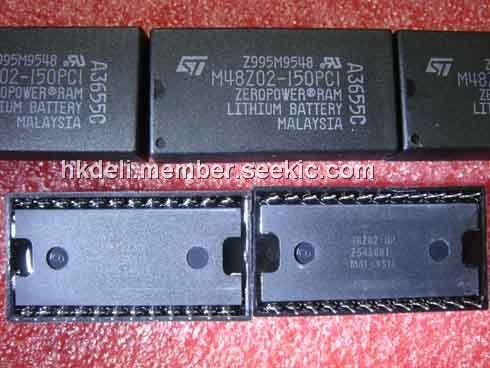

The M48Z02-150PC1 is a 2K x 8non-volatile static RAM which is pin and functionalcompatible with the DS1220.A special 24-pin, 600mil DIP CAPHAT packagehouses the M48Z02-150PC1 silicon with a long life lithi-um button cell to form a highly integrated battery backed-up memory solution.The M48Z02-150PC1 button cell has sufficient capacity and storage life to maintain data functionality for an accumulated time period of at least 10 years in the absence of power over commercial operating temperature range.

Parametrics

M48Z02-150PC1 absolute maximum ratings: (1)Storage Temperature: -40 to 85℃; (2)Lead Solder Temperature for 10 seconds: 260℃; (3)Input or Output Voltages:–0.3 to 7V; (4)Supply Voltage:–0.3 to 7V; (5)Output Current: 20mA; (6)Power Dissipation:1W.

Features

M48Z02-150PC1 features: (1)integrated, ultra low power sram and power-fail control circuit; (2)unlimited write cycle; (3)automatic power-fail chip deselect and write protection; (4)self-contained battery in the caphat dip package.

Diagrams

M48Z02-150PC1 Logic Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M48Z02-150PC1
M48Z02-150PC1

STMicroelectronics

NVRAM 16K (2Kx8) 150ns

Data Sheet

0-1: $5.51
1-10: $4.96
10-100: $4.07
100-250: $3.74
