Product Summary

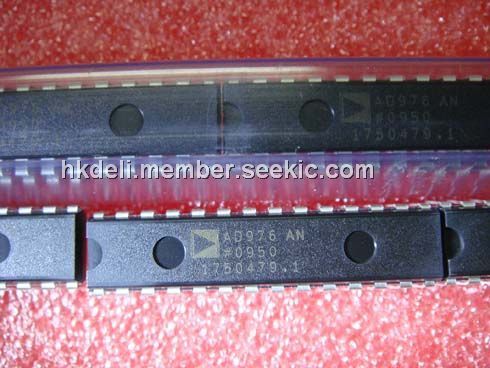

The AD976AN is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference and a high speed parallel interface. The AD976AN is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 V. The AD976AN is comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.
Parametrics
AD976AN absolute maximum ratings: (1)Analog Inputs: VIN: ±25 V, CAP: +VANA + 0.3 V to AGND2 – 0.3 V, REF: Indefinite Short to AGND2; (2)Ground Voltage Differences: DGND, AGND1, AGND: ±0.3 V; (3)Supply Voltages: VANA: 7 V, VDIG to VANA: ±7 V, VDIG: 7 V; (4)Digital Inputs: –0.3 V to VDIG + 0.3 V; (5)Internal Power Dissipation: PDIP (N), SOIC (R), SSOP (RS): 700 mW; (6)Junction Temperature: +150℃; (7)Storage Temperature Range (N, R, RS): –65℃ to +150℃; (8)Lead Temperature Range (Soldering 10 sec): +300℃.
Features
AD976AN features: (1)Fast 16-Bit ADC; (2)200 kSPS Throughput – AD976A; (3)100 kSPS Throughput – AD976; (4)Single 5 V Supply Operation; (5)Input Range: 610 V; (6)100 mW Max Power Dissipation; (7)Choice of External or Internal 2.5 V Reference; (8)High Speed Parallel Interface; (9)On-Chip Clock; (10)28-Lead Skinny DIP, SSOP or SOIC Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD976AN |
|
IC ADC 16BIT 100KSPS 28-DIP |
Data Sheet |
|
|
||||||||||||||
|
AD976ANZ |
|
IC ADC 16BIT 100KSPS 28-DIP |
Data Sheet |
|
|
||||||||||||||
